The OR truth table is one of the most fundamental concepts in digital electronics and logic design. It shows how an OR gate behaves with different input combinations and helps you understand how logical decisions are made in circuits. Whether you’re learning about a 2 input OR gate truth table for the first time or exploring advanced variations like a 3 input OR gate truth table, this guide breaks everything down in a simple and practical way.
Table of Contents
What Is an OR Truth Table?
An OR truth table is a table that lists all possible input combinations for an OR gate and shows the corresponding output.
Learn these simple OR logic rules:
- The output is 1 (true) if at least one input is 1
- The output is 0 (false) only when all inputs are 0

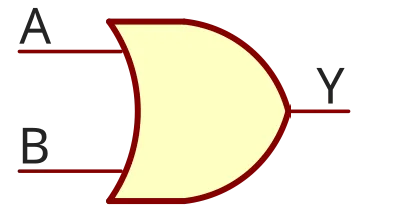

Basic OR Gate Truth Table (2 Inputs)
This basic OR gate logic table is the foundation for all OR-based circuits. Another way to think of the OR truth table is that the output is one (true, high) if one or more inputs are one (true, high). Alternately: the output of an OR gate is zero (false, low) only when all inputs are zero (false, low).
| Input A | Input B | Output (A OR B) |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
Understanding the OR Gate Logic Table
The OR gate logic table works by evaluating whether any input is active (1). If even one input is high, the output becomes high.
Key Characteristics of the OR Truth Table
- Inclusive logic (not exclusive like XOR)
- Simple and fast decision-making
- Widely used in control systems and digital circuits
OR Truth Table Practical Example
If you have two switches wired in parallel with each other controlling a light:
- The light turns on if either switch is ON
- This is exactly how an OR gate behaves
3 Input OR Truth Table Explained
A common question is: can an OR gate have 3 inputs? The answer is yes. OR gates can have multiple inputs, not just two.
3 Input OR Gate Truth Table
In a 3 input OR gate truth table, the output is 0 only when all inputs are 0. In all other cases the output is 1.
| A | B | C | Output |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 |
| 0 | 1 | 0 | 1 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 0 | 1 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 |
4 Input OR Truth Table Breakdown
As circuits become more advanced, designers often need to evaluate multiple input conditions at the same time. This is where the 4 input OR gate truth table becomes especially useful. Instead of working with just two signals, a 4-input OR gate allows four different conditions to influence a single output. This is common in real-world systems where multiple sensors, switches, or signals can independently trigger the same action. Understanding this expanded version of the OR truth table helps you scale your knowledge from simple logic circuits to more complex digital systems.
4 Input OR Gate Truth Table
When dealing with a 4 input OR gate truth table, there are 16 possible input combinations because each of the four inputs (A, B, C, and D) can be either 0 or 1. Despite the increase in combinations, the core logic of the OR truth table does not change. The output remains straightforward to determine once you understand the rule.
For the 16 possible input combinations of an OR gate or OR truth table, the rule remains:
- Output = 1 if any input (A, B, C, or D) is 1
- Output = 0 only when A = B = C = D = 0
This consistency is what makes OR logic so powerful and easy to apply. No matter how many inputs you add, you do not need to learn a new rule. Just apply the same principle across more variables.
4 Input OR Truth Table
Looking at the rows first few rows of a 4 input OR truth table, you can quickly see the pattern emerge. The very first row, where all inputs are 0, produces an output of 0. Every other row includes at least one input set to 1, which immediately forces the output to 1. This makes it easy to scan large tables without analyzing every column in detail.
The same logic applies regardless of the number of inputs. Whether you are working with a 2-input, 3-input, or 4-input OR gate, the behavior is identical: the presence of a single high input results in a high output. This predictable pattern is what allows engineers to design reliable and scalable logic systems.
| A | B | C | D | Output |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 1 | 1 |
| 0 | 0 | 1 | 0 | 1 |
| 0 | 0 | 1 | 1 | 1 |
| 0 | 1 | 0 | 0 | 1 |
| 0 | 1 | 0 | 1 | 1 |
| 0 | 1 | 1 | 0 | 1 |
| 0 | 1 | 1 | 1 | 1 |
| 1 | 0 | 0 | 0 | 1 |
| 1 | 0 | 0 | 1 | 1 |
| 1 | 0 | 1 | 0 | 1 |
| 1 | 0 | 1 | 1 | 1 |
| 1 | 1 | 0 | 0 | 1 |
| 1 | 1 | 0 | 1 | 1 |
| 1 | 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 | 1 |
OR Truth Table Formula and Expression
The OR truth table can also be represented using Boolean algebra, which provides a mathematical way to describe logic circuits. The standard expression for a basic OR gate is:
Y = A + B
Here, the plus symbol (+) does not mean addition in the arithmetic sense. Instead, it represents the OR operation, where the output is true if any input is true.
For multiple inputs, the expression expands naturally:
- 3 inputs: Y = A + B + C
- 4 inputs: Y = A + B + C + D
This direct mapping between the OR truth table and Boolean expressions makes it easy to move between visual tables and algebraic representations. It also allows for simplification and optimization when designing more complex digital circuits.
Applications of OR Gate Truth Tables
Understanding the OR truth table is essential for designing systems that rely on multiple conditions to trigger a single outcome. OR logic is widely used because it models real-world scenarios where any one of several events should activate a response.
Common Uses
- Alarm systems: If any sensor (motion, door, window) is triggered, the alarm activates
- Control systems: Machines can respond when any one of several inputs reaches a certain condition
- Decision-making circuits: Logical decisions in processors and embedded systems often rely on OR conditions
- Digital computing operations: OR gates are fundamental building blocks in CPUs and logic units
In all these cases, the OR gate logic table ensures that the system responds quickly and reliably whenever at least one required condition is met.
Tips for the OR Truth Table
Working with an OR truth table becomes much easier once you recognize patterns and apply a few practical strategies. Instead of evaluating each row from scratch, you can use shortcuts to speed up your analysis and reduce errors.
Practical Tips
- Always check if at least one input is 1 before doing anything else
- For multiple inputs, scan the row visually rather than comparing values one by one
- Memorize the key rule: only all zeros produce zero
- Use patterns to simplify large truth tables, especially in 4 input OR gate truth table scenarios
- Practice regularly with both 3 input and 4 input OR gate truth table examples to build confidence
These techniques are especially helpful when working under time constraints, such as in exams or real-world troubleshooting situations.
Did You Know?
The OR truth table has a long history and plays a critical role in both hardware and software systems. While it may seem simple at first glance, it underpins much of modern computing.
- The OR gate is one of the three fundamental logic gates, alongside AND and NOT
- OR logic is known as inclusive OR, meaning it returns true if any input is true, unlike XOR which requires exactly one true input
- Multi-input OR gates are often constructed by combining smaller OR gates in layers
- The concept of the OR truth table is widely used in programming, especially in conditional statements
- Early computer systems relied heavily on simple logic structures like the OR gate logic table to perform calculations and make decisions
These insights highlight how a simple concept like the OR truth table forms the foundation for much more complex technologies.
Frequently Asked Questions
The OR truth table is a core concept in digital logic, so it is natural to have questions when learning how it works and how it is applied. Below are clear and detailed answers to some of the most common questions, helping you build a stronger understanding of OR gates, their behavior, and their role in real-world systems.
What is an OR truth table?
An OR truth table is a structured way of listing every possible combination of input values for an OR gate and showing the resulting output for each case. It helps visualize how the OR logic operation behaves under all conditions. The defining rule is that the output becomes 1 (true) if at least one input is 1, and it becomes 0 (false) only when all inputs are 0. This makes the OR truth table one of the simplest and most intuitive tools for understanding logical decision-making in digital electronics.
What is an OR gate truth table used for?
An OR gate truth table is used primarily in the design, analysis, and verification of digital circuits. Engineers rely on it to predict how a circuit will behave before physically building it. It is also widely used in education to teach logic fundamentals, in troubleshooting to identify faulty logic paths, and in programming to model conditional operations. By using an OR gate logic table, designers can ensure that systems respond correctly when any required condition is met.
Can OR gates have 3 inputs?
Yes, OR gates can have three or more inputs, and this is very common in practical circuit design. A 3 input OR gate truth table follows exactly the same rule as a 2-input version: the output is 1 if any of the inputs is 1. Adding more inputs simply increases the number of possible input combinations, but it does not change the logic itself. Multi-input OR gates are especially useful in systems where multiple signals need to independently trigger the same output.
What is a 4 input OR gate truth table?
A 4 input OR gate truth table lists all 16 possible combinations of four inputs (A, B, C, and D) and their corresponding outputs. Despite the larger size, the logic remains consistent with the standard OR truth table rule. The output is 0 only when all four inputs are 0, and it is 1 in every other case. This type of table is commonly used in more complex systems where several conditions must be monitored simultaneously.
What is the OR gate logic table rule?
The OR gate logic table rule is straightforward and consistent across all configurations: the output is true (1) if at least one input is true. This is why OR logic is often described as inclusive. That is, it includes any case where one or more inputs are active. This rule applies regardless of whether the gate has two inputs or many, making it easy to scale up without changing the underlying principle.
How do you write an OR Boolean expression?
An OR Boolean expression is written using the plus (+) symbol to represent the OR operation. For example, Y = A + B means the output Y is true if either A or B is true. For more inputs, the expression expands naturally, such as Y = A + B + C or Y = A + B + C + D. These expressions directly correspond to the OR truth table and are used extensively in circuit design, simplification, and analysis.
Why is the OR truth table important?
The OR truth table is important because it forms a fundamental building block for all digital systems. It helps engineers and students understand how logical decisions are made within circuits, from simple devices to complex processors. By mastering this truth table, you gain the ability to design reliable systems, analyze logic behavior, and troubleshoot issues effectively. It also provides a foundation for learning more advanced topics in digital electronics and computer engineering.
Conclusion
The OR truth table is a foundational concept in logic design that helps you understand how OR gates process inputs. From the basic OR gate truth table to more advanced forms like the 3 and 4 input OR gate truth tables, the core rule remains the same: the output is true if any input is true. Mastering this concept makes it much easier to design and analyze digital systems effectively.
