The truth table for D flip flop is essential for anyone learning about sequential digital circuits. A D flip flop, or D FF, is a fundamental building block in digital electronics used for storing and transferring data on clock edges.
In this article, we explore the D FF truth table, the excitation table of D flip flop, and the characteristic table of D flip flop to provide a comprehensive understanding of its operation.
Table of Contents
- What Is the Truth Table for D Flip Flop?
- Understanding the D Flip Flop Excitation Table
- Characteristic Table of D Flip Flop
- Tips for Truth Table for D Flip Flop
- Did You Know About the Truth Table for D Flip Flop?
- Frequently Asked Questions About the Truth Table for D Flip Flop
- Conclusion

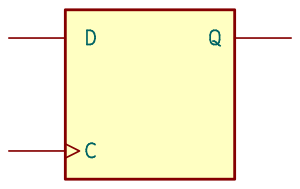

What Is the Truth Table for D Flip Flop?
The truth table for D flip flop illustrates the relationship between the input, clock, and output. Unlike simple logic gates, flip flops are edge-triggered devices. The output changes state only at the triggering edge of the clock signal, usually the rising edge.
| Clock Edge | D (Input) | Q (Next State) |
|---|---|---|
| Rising | 0 | 0 |
| Rising | 1 | 1 |
| No Edge | X | Q (No Change) |
- On the rising edge of the clock, the output Q follows the input D.
- When there is no clock edge, the output holds its previous state.
This simple table forms the core behavior of the D flip flop and helps in designing synchronous circuits.
Understanding the D Flip Flop Excitation Table
The excitation table of D flip flop helps designers determine the required input values to achieve a desired transition from the current state QtQt to the next state Qt+1Qt+1.
| Current State (Q_t) | Next State (Q_{t+1}) | D Input Required |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
The table shows that the D input directly sets the next state of the flip flop, making the D flip flop easy to use in memory and data storage applications.
Characteristic Table of D Flip Flop
The characteristic table of D flip flop is a concise way to summarize the output based on the inputs, confirming the flip flop’s functionality.
| D | Q (Next State) |
|---|---|
| 0 | 0 |
| 1 | 1 |
The characteristic table confirms the direct connection between input D and the output after the clock edge.
Tips for Truth Table for D Flip Flop
- Remember that the output only changes on the clock’s triggering edge; it ignores changes in D at other times.
- Use the excitation table to design logic that feeds the correct input for desired output transitions.
- Simulate the flip flop operation with a waveform to better understand timing and edge-triggered behavior.
- Combine the D flip flop with other sequential circuits to build registers, counters, and memory elements.
Did You Know About the Truth Table for D Flip Flop?
- The D flip flop was invented to eliminate the race condition problem seen in SR flip flops.
- It’s widely used in registers, shift registers, and memory devices in computers.
- The excitation table concept applies to other flip flop types (JK, T) but differs in input requirements.
- D flip flops are fundamental components in synchronous digital systems because of their predictable output timing.
Frequently Asked Questions About the Truth Table for D Flip Flop
What is a D flip flop used for?
A D flip flop is used for storing a single bit of data and transferring data on clock edges in sequential logic circuits.
How does the D FF differ from other flip flops?
The D flip flop has a single data input that directly controls the output, unlike JK or T flip flops which have more complex input combinations.
What is an excitation table in flip flops?
An excitation table shows what input values are needed to transition the flip flop from its current state to a desired next state.
Can the D flip flop hold its state?
Yes, if the clock does not trigger, the flip flop holds its previous output state regardless of changes in input.
Is the truth table for D flip flop different from other flip flops?
Yes, the truth tables and excitation tables differ based on the flip flop type due to differences in input controls and behavior.
Conclusion
The truth table for D flip flop is a fundamental concept for understanding how data is stored and transferred in digital circuits. By mastering the D FF truth table, excitation table of D flip flop, and the characteristic table of D flip flop, beginners and professionals alike can design reliable and efficient synchronous systems. The D flip flop’s simple yet powerful behavior makes it an essential building block in modern electronics.
